A full range of analog and vector signal generators, agile synthesizers, and CW sources for aerospace, defense, telecom, and advanced research. Single-tone purity, multichannel phase coherence, and fast switching, on the bench or built into a system.
Generators for the bench, agile synthesizers for the rack, and vector sources for modulated test. Each family carries a span of models, from a 6 GHz entry unit to a 54 GHz flagship and up to four phase-coherent channels. Pick the band, the channel count, and the form factor your work needs.
Benchtop and rackmount analog generators from 9 kHz to 54 GHz. Touchscreen operation, AM, FM, phase, and pulse modulation, high output power, and an entry-level path up to a 54 GHz flagship for radar, EW, and receiver test.
Frequency-agile synthesizer modules from 8 kHz to 40 GHz with switching as fast as 5 microseconds and up to four phase-coherent channels. Low phase noise and a compact module form make these the engine for phased arrays and ATE.
Multichannel vector signal generation from 10 MHz to 40 GHz with I/Q modulation, pulse, and CW in one chassis. Up to four phase-coherent channels generate the complex, modulated waveforms that 5G/6G, SATCOM, and MIMO test demand.
Each one leads the line on a single axis. When the requirement is the widest band, the fastest hop, the cleanest carrier, or true vector modulation, these are the units that answer it.

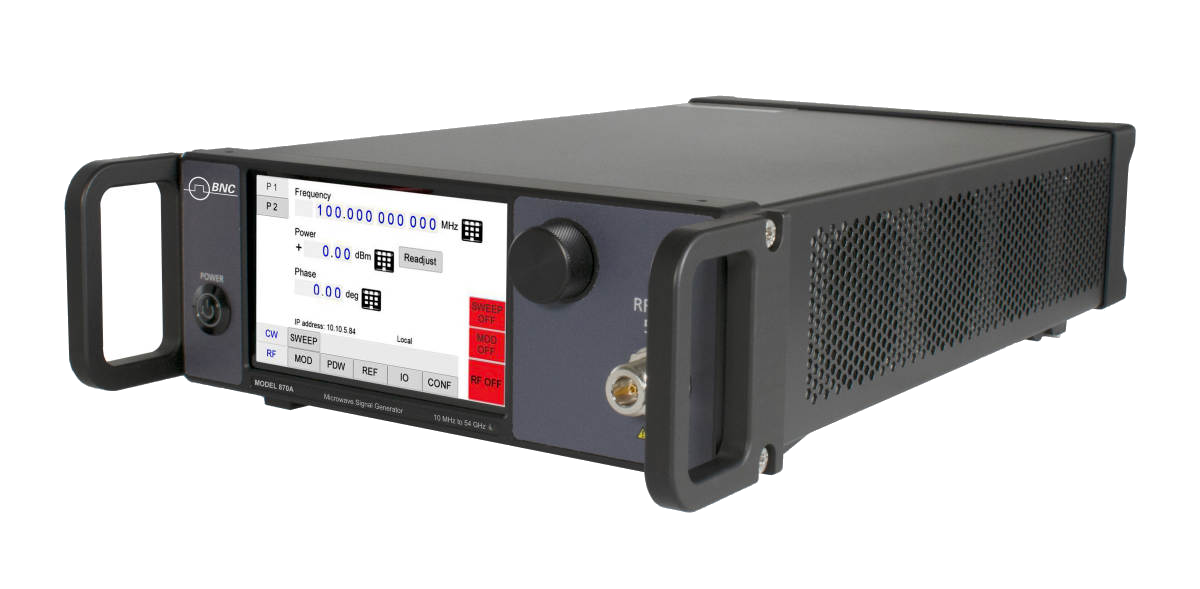

10 MHz to 54 GHz in a redesigned touchscreen platform. The widest continuous coverage in the line for millimeter-wave and broadband work.
Power & channels300 kHz to 42 GHz with high output power and a multi-output architecture for blanking, jamming margin, and multi-emitter scenes.
Fastest switching8 kHz to 20 GHz with switching as fast as 5 microseconds and multichannel agility, built for frequency-hopping and fast ATE sweeps.
Low phase noiseThe 865B broadband source and the 845-M low-noise synthesizer hold a quiet carrier for blocker, ADC, and clock-reference test.
Vector10 MHz to 40 GHz with I/Q vector modulation, pulse, and CW across up to four phase-coherent channels for modulated-signal test.
Flagship multichannel1 kHz to 51 GHz with 5 microsecond switching and a multichannel front panel. The flagship generator for demanding microwave test.
Coverage from kilohertz up to 54 GHz on the 870A, with 51 GHz on the 871 and 42 GHz multichannel on the 855B for millimeter-wave work.
Low single-sideband phase noise on the 865B and 845-M holds a quiet carrier for blocker, receiver, and clock-reference test. Verify per model.
Frequency switching as fast as 5 microseconds on the 825-M and 871 supports frequency-hopping, fast sweeps, and tight ATE cycle times.
Multichannel architectures on the 855B, 865B-M-40-X, 875, and 871 deliver up to four phase-coherent outputs for arrays and MIMO.
AM, FM, phase, and pulse modulation across the analog line, with full I/Q vector modulation on the 875 for complex modulated waveforms.
Benchtop touchscreen instruments, rackmount synthesizer modules, and the 845-OEM embedded design for building a source into a system.
Each field has its own demand on the signal, whether that is band, purity, agility, or modulation. Each one ships with an application brief covering the workflow and the configuration that fits, or submit your application.
Threat simulation, radar receiver test, and jamming margin, with wide band, fast switching, and multi-emitter scenes.
SATCOMUp- and down-converter test, transponder characterization, and link emulation across Ku, Ka, and beyond.
QuantumLow-noise qubit drive and readout tones, where carrier purity and phase stability set the coherence budget.
WirelessModulated and vector waveforms, blocker and interferer test, and millimeter-wave coverage for next-gen wireless.
ATEFast switching and multichannel sources for high-throughput automated test of receivers and front-end modules.
DefenseSystem integration, antenna and array test, and rugged or embedded sources for airborne and ground platforms.
Talk to a Berkeley Nucleonics engineer about the frequency range, phase noise, channel count, and form factor that fit your signal requirement. Call 800-234-7858 or write info@berkeleynucleonics.com.
Get a quote or demo
