PVX-4000-2kV and PVX-4000-2kV-EX Pulsed Voltage Source

1Overview

The PVX-4000-2kV is an air-cooled high-voltage pulse generator built to drive high-impedance capacitive loads. It produces fast bipolar pulses up to plus or minus 2000 V, with the positive and negative excursions sharing a 2000 V budget. The output is designed for extraction grids, deflection plates, and similar electrostatic elements, where the load looks capacitive and the pulse must rise and settle quickly without excessive overshoot.

Two variants are offered on this page. The standard PVX-4000-2kV carries internal positive and negative HV DC power supplies, so it runs as a complete standalone test system out of the box. The PVX-4000-2kV-EX removes the internal supplies and accepts external HV through dedicated DC HV input connectors. That arrangement lets the EX variant reach a much higher external-gate repetition rate and draw far less power from the wall, at the cost of requiring user-supplied high-voltage sources.

Both variants share the same output stage, the same plus or minus 2000 V range, the same rise and fall behavior, and the same control and monitoring interface. Up to five system configurations can be stored in non-volatile memory and recalled, which makes repeated test setups quick to reproduce. DEI, now a division of Berkeley Nucleonics, originated this pulse-generator line.

2How It Works

The PVX-4000 switches a high-voltage output between programmed positive and negative levels, charging and discharging the capacitive load on each transition. Because the load is capacitive, the achievable repetition rate depends on how much charge the output stage must move per pulse, which in turn depends on the load capacitance and the voltage swing. The Safe Operating Area (SOA) curves capture this relationship directly.

Output can be driven from the internal trigger generator or from an external gate. The internal trigger covers 40 Hz to 30 kHz on both variants. The external gate is where the two variants diverge: the standard PVX-4000-2kV accepts external gating from single-shot up to 100 kHz, while the PVX-4000-2kV-EX accepts external gating from single-shot up to 600 kHz. The higher EX ceiling follows from its use of external HV supplies, which the internal-supply standard model does not have.

The external gate input is a simple logic-level control: 0 V holds the output off, and plus 5 V turns the output on. With the gate held continuously, duty cycle can reach 100 percent. Pulse shape is fast and clean, with rise and fall times at or below 50 ns over the 500 V to 2000 V span and overshoot held under 2 percent.

3Specifications

All specifications are preliminary and subject to verification against the published Berkeley Nucleonics datasheet. The table below compares the two variants. Where a value is shared, it applies to both.

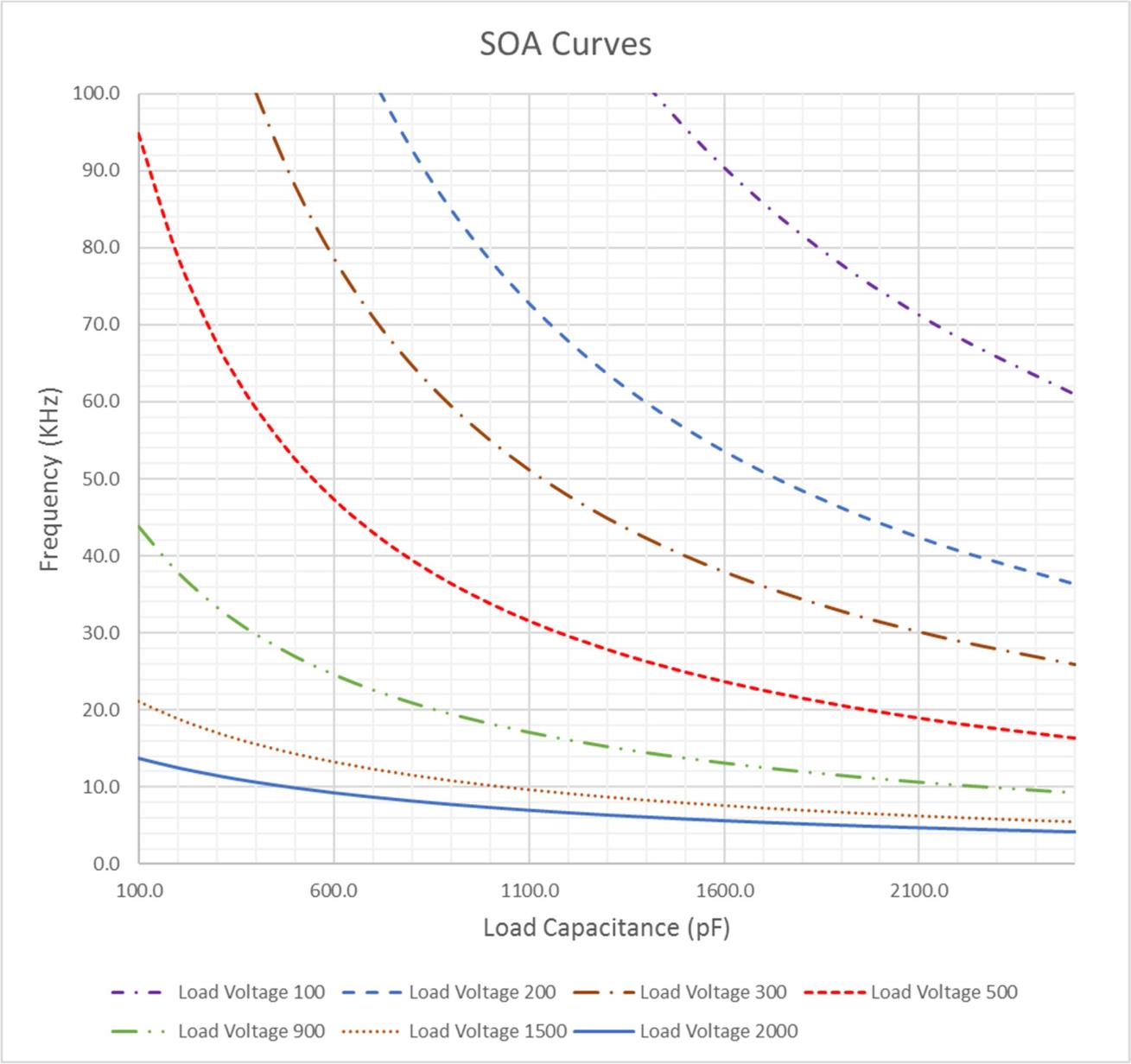

Safe Operating Area

The Safe Operating Area defines the usable envelope for this pulse generator. For each output voltage, the curve sets the maximum pulse repetition frequency as a function of load capacitance. Stay below the relevant curve to keep the output stage within its thermal and current limits. Remember to add the cable contribution, 1.57 pF per 1.0 cm, to the bare load capacitance before reading the chart.

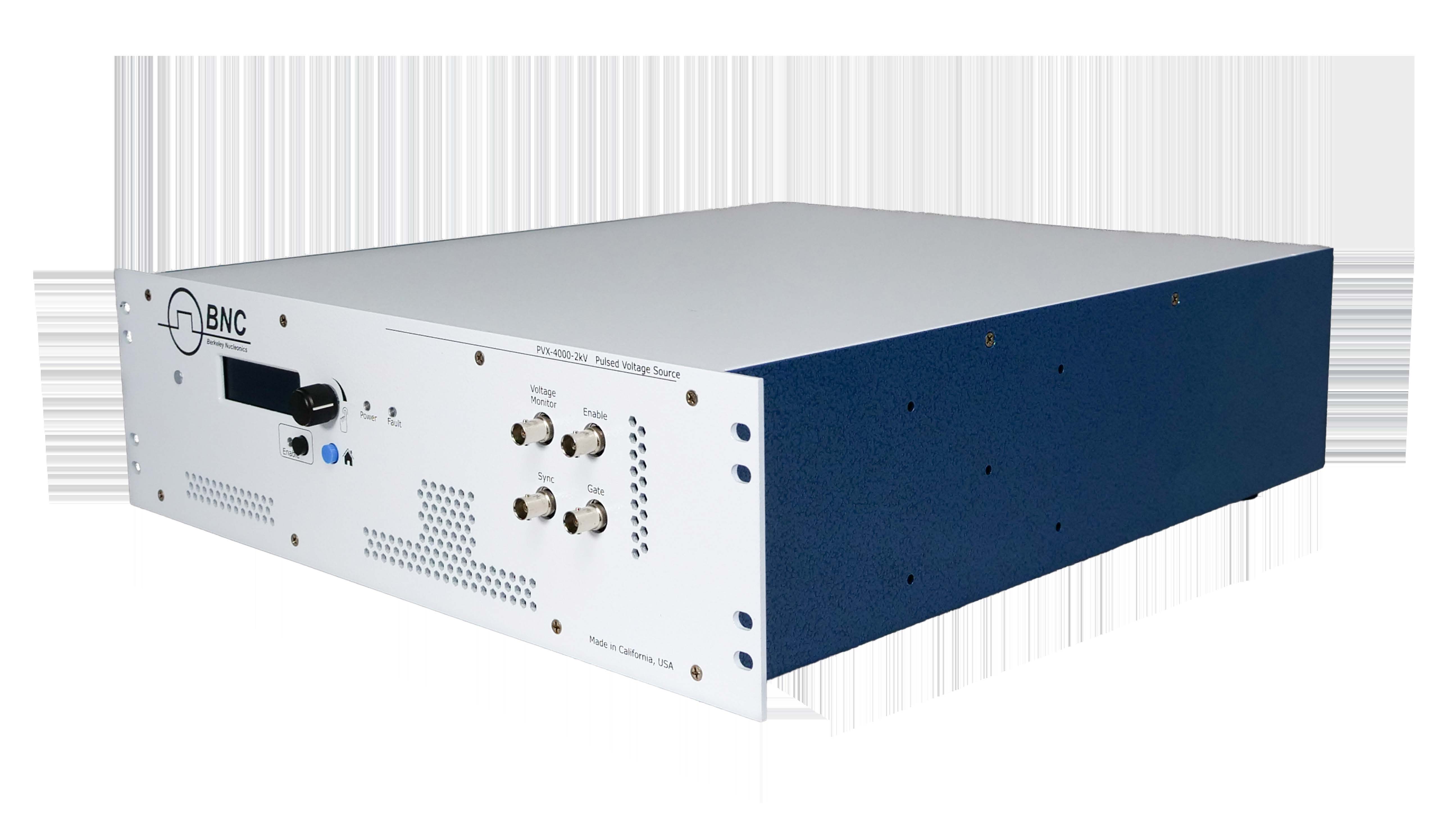

4Monitoring & Front Panel

The front panel groups the controls and the diagnostic signals needed to set up and verify pulse operation. Trigger source, voltage levels, and gate behavior are configured locally or over the computer interface, and two BNC outputs let an oscilloscope confirm what the generator is doing.

Voltage Monitor

The voltage monitor scales the high-voltage output to a safe, scope-friendly level at 1000 V per 10 V, typical, into a 1 MΩ termination on a BNC. Connect it with RG-58/U 2 ft coax into a 1 MΩ oscilloscope input. This gives a real-time view of the output pulse amplitude and shape without direct contact with the high-voltage line.

Sync Output

The sync output is a 50 Ω BNC that flags output polarity for the scope and downstream timing. A 0 V sync level corresponds to a negative HV output pulse, and a sync level below plus 3.3 V corresponds to a positive HV output pulse. Use it to trigger acquisition in step with the pulse train.

Enable Input

The enable input is a BNC that arms the output. It accepts an external dry-contact closure, or the factory-supplied shorting BNC plug for benchtop use. With the enable open, the output stays inhibited, which supports a simple external interlock.

Computer Communication

Both variants communicate over RS-232 and USB at 115200 baud, 8 data bits, no parity, 1 stop bit, and no flow control. Up to five complete system configurations can be stored in non-volatile memory and recalled, so repeated experiments and production tests return to a known state quickly.

5Applications

The PVX-4000-2kV and PVX-4000-2kV-EX are purpose-built for electrostatic modulation of charged-particle beams, where the load is a grid or a plate that behaves as a capacitor and the timing must be precise.

• Time-of-flight mass spectrometry. Drive extraction grids and pulsing electrodes to inject and gate ion packets, where fast, repeatable transitions set mass resolution.
• Accelerator beam steering and gating. Apply pulsed potentials to deflection plates for beam blanking, chopping, and electrostatic steering.
• Ion and electron optics. Switch extraction and lens elements that present a capacitive load and require clean, bounded-overshoot edges.
• Pulsed electrostatic deflection. Deflect or deflect-and-blank a beam at internal rates to 30 kHz, or under external gate to 100 kHz (standard) or 600 kHz (EX).

Choosing between the two variants

Pick the standard PVX-4000-2kV when a self-contained system is the priority. Its internal positive and negative HV supplies make it a complete bench instrument with nothing else to source. Pick the PVX-4000-2kV-EX when the application needs higher external-gate repetition rate (to 600 kHz) or lower wall-power draw (100 W versus 600 W), and external HV supplies are already available or planned. Both deliver the same pulse amplitude, edge speed, and overshoot performance.
